| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | BAXIT |
| หมายเลขรุ่น: | BXT-HP10/BXT-HP20/BXT-HP50 |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 |
| ราคา: | US $8283.0 - 12496.0 / Unit |
| รายละเอียดการบรรจุ: | กล่องกล่อง/กล่องไม้ |
| เวลาการส่งมอบ: | 5-8 วันทำงาน |
| เงื่อนไขการชำระเงิน: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| สามารถในการผลิต: | 10,000pcs |
| ความหนืดของกระบวนการผลิตภัณฑ์: | <2000cps | จำนวนขั้นตอนการทำให้เป็นเนื้อเดียวกัน: | การทำให้เป็นเนื้อเดียวกันระดับแรก (การทำให้เป็นเนื้อเดียวกัน, อิมัลซิไฟเออร์, การกระจาย) |
|---|---|---|---|
| เน้น: | high-pressure nano homogenizer for lab,lab homogenizer with warranty,industrial nano homogenizer for experiments |
||
High-pressure nano homogenizer
The high-pressure nano-homogenizer, as a device integrating "high-pressure transportation - multi-force synergy - precise homogenization", has its core value in achieving nano-scale refinement and dispersion of materials through physical actions, providing technical support for product innovation and process upgrading in various industries. Whether it is precise drug delivery in the pharmaceutical industry, quality improvement in the food industry, or scientific research exploration in biotechnology, it plays an irreplaceable role. With the continuous development of nanotechnology, the high-pressure nano-homogenizer will be upgraded towards higher pressure, more intelligence, and greater environmental friendliness, further expanding its application boundaries in high-end manufacturing and scientific research fields.
Show examples
Disrupt Saccharomyces cerevisiae cells to extract intracellular alcohol dehydrogenase (ADH), with a requirement that the enzyme activity retention rate is ≥ 85%.
Equipment Selection:
Manual-type high-pressure nano-homogenizer (pressure: 15,000 bar, processing capacity: 20 mL per batch), equipped with an ice-water bath for cooling.
Process Effect:
The cell disruption rate reaches 95%, and the enzyme activity retention rate is 88%. Compared with traditional ultrasonic disruption (which has an enzyme activity retention rate of 70%), the loss of enzyme activity is significantly reduced. Additionally, this equipment is easy to operate and suitable for repeated experiments with small-volume samples.
Model and Specifications
| Model | BXT-HP10 | BXT-HP20 | BXT-HP50 |
| Maximum flow | 10-15L/H | 20-23L/H | 10-40L/H |
| Output | 15ML-10L/H | 18ML-23L/H | 50ML-40L/H |
| Minimum processing capacity | 15ML | 20ML | 50ML |
| Design uniform pressure | Maximum 2000 bar | Maximum 1650bar | |
| Maximum working pressure | 1650bar | 1500bar | 15000bar |
| Main motor | 1.5KW,Level 8 | 2.2KW,Level 8 | 5.5KW,Level 6 |
| Voltage/Frequency | 220V/50Hz/2-Phase | 380V/50Hz/3-Phase | 380V/50Hz/3-Phase |
| Process products | Nano emulsions, food emulsification, suspensions, liposomes, fat emulsions, etc. | ||
| Product process viscosity | <2000cPs | ||
| Maximum feed particle size | <500μm | ||
| Homogenization stage number | First-level homogenization(homogenization, emulsification, dispersion) | ||
| Pressure gauge | High-precision sanitary digital pressure sensor | ||
| Level / Plunger | Hygienic Grade / 1 Piece of Zirconia Ceramic | ||
| Internal cooling | Fan | ||
| Feed and discharge connection | Tri-Clamp Quick-Connect Chuck | ||
| Maximum cleaning temperature | <90°C | ||
| Maximum sterilization temperature | <145°C | ||
| Cleaning / Disinfection Time | 30 minutes | ||
| Pressurization method | Manual pressurization | ||
| Split pump head | SAF2205 | ||
| Guide plate | SUS316L | ||
| Homogenizing valve | Diamond | ||
| Overall dimensions | 550x440x440mm | 630x520x440mm | 840x632x920mm |
| Net weight | 150kg | 150kg | 240kg |
Product structure

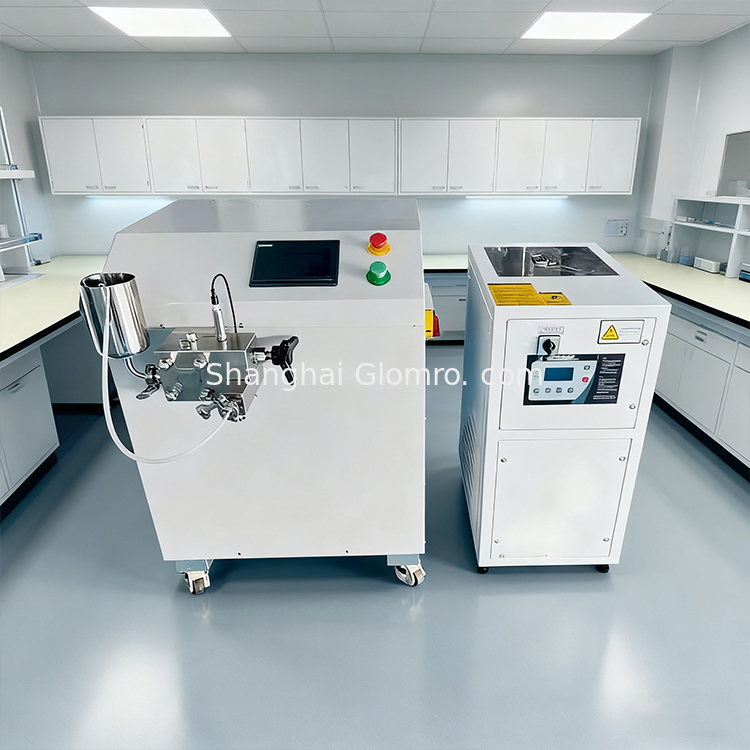

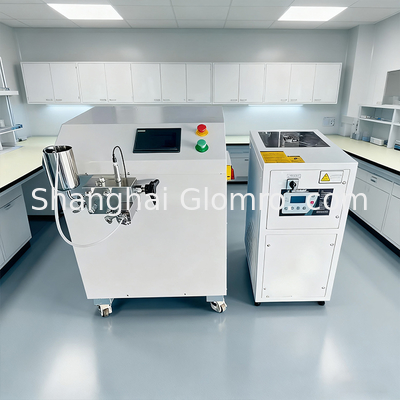

Physical picture
